Ordinate Dimensions
Overview

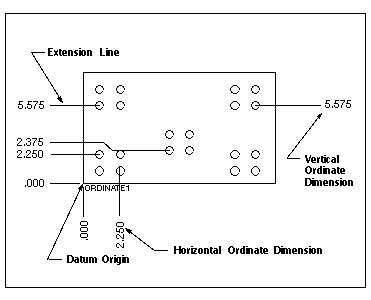

Ordinate dimensions consist of dimension text and a single extension
line. The ordinate dimension text is referenced along either a horizontal
or vertical distance from a datum origin (single base position).
The ordinate dimension Open C API routines allow you to:
-
Get dogleg information.
-
Get ordinate origin information.
-
Create the origin of an ordinate dimension.
-
Create an ordinate margin.
-
Create an ordinate dimension.
