Symbols and Text Control Characters



Overview

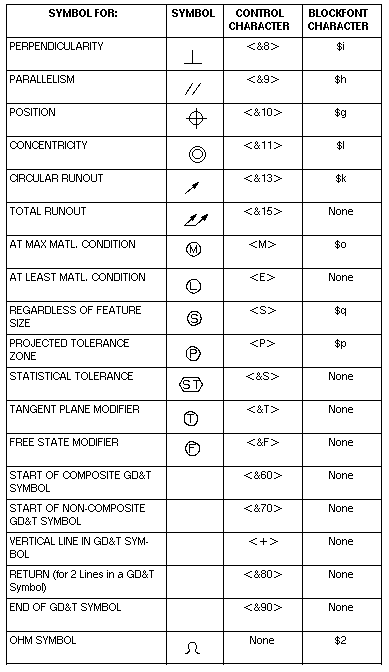

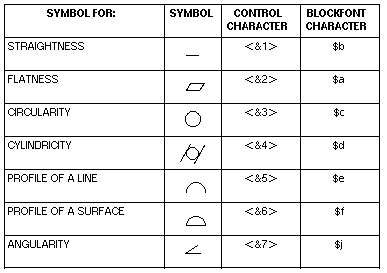

You can use control characters and blockfont characters to generate symbols, expressions, and attributes (part and object) in notes, labels, dimensions, ID symbols, and GD&T symbols.

Because of the different text formats allowed in dimensions and drafting aids, control character command strings have been defined to allow fractions, tolerances, ANSI characters, and form and positional tolerance symbols in the text. They can be used in any text such as appended text or associated text. The actual string can be 50 characters maximum, and the appended text and text in notes, labels, etc., can be 132 characters maximum. Control character command strings consist of less-than sign (<), a character command, possibly a parameter set, and a greater-than sign (>). A parameter set can be one of four options, depending on the control command. It can be:

1. Null, i.e., no parameter
2. A number
3. Two strings separated by an exclamation point (!).
4. Two strings separated by an @ sign. This last format allows expressions and attributes to be inserted in associated and appended text.









The following control characters are used to format text.

<Br> BLANK SPACE

You can insert a blank space in the text string. The value assigned to the variable "r" will make one blank space "r" times the blank character of the current font.

<Zr> LINE SPACING

You can vary the spacing between lines of text by assigning a value to the variable "r". The distance from one line of text to the next will be "r" times the line spacing defined for the current font. To reset spacing to the default values, enter <Z> .

<Gr> GAP

You can assign a value to the variable "r" to make the spacing between text characters "r" times the character spacing of the current font. To reset, enter G .

<Cr> CHARACTER SIZE

You can change the character size by assigning a value to the "r" variable. The new character size will be "r" times the character size of the current font. To reset the size to the original font, enter <C>.

NOTE: Always perform a reset when using Character Size control character along with other control characters (e.g. Underline, Font, etc) within a text string. Failure to do so may produce unsatisfactory results.

<Fn> FONT

You can assign a value to the "n" variable to change the current font. "n" is a number between 1 and 14 corresponding to the font list for the part. Enter an <F> to reset to the original font.

<Dn> CHARACTER LINE WIDTH

Use the "Dn" control character to change the line width of the text "n" can be a 1, 2, or 3 and corresponds to normal, thick, or thin, respectively.

<A> ABOVE LINE, OVER LINE

You can draw a straight line above the usual text line. Enter <A> at the beginning of the text to start the over line and <A> at the end of the text to terminate the over line.

<U> UNDERLINE

You can draw a straight line below the usual text line. Enter <U> at the beginning of the text to start the underline and <U> at the end of the text to terminate the underline.

<L> SUBSCRIPT

You can use a subscript to place a half-size character below the bottom line of the text. Use <L> at the start and at the end of the characters to be subscripted.

<In> INCLINATION (italics)

Enter the text control <In> immediately before a word(s) you wish to incline (or italicize), with "n" as the number of degrees for the angle of inclination. 20 is a common value to enter with values greater than 70 rendering the characters unreadable. To turn the inclination off, follow the inclined word(s) with <I>.

<H> SUPERSCRIPT

You can use a superscript to place a half-size character above the top line of the text. Use <H> at the start and at the end of the characters to be superscripted.

<N> TEXT CONTINUATION

Placing an <N> at the end of a line indicates that the next line is a continuation of the current line. The carriage return at the end of the first line will be ignored and the second line will be displayed after the first one. This can be used to overcome the 132 characters per line limit.

<Rn!d> COMMON FRACTION

A common fraction is displayed by assigning values to "n" and "d". "n" is the numerator and "d" the denominator. "!" is the separation character. No control characters can be nested inside the brackets.

<Qn!d> THREE-QUARTER SIZE FRACTION

A three-quarter size fraction is displayed when you use these control characters. Values assigned to "n" and "d" defines the numerator and denominator respectively. "!" is the separation character. No control characters can be nested inside the brackets.

<Vn!d> FULL-SIZE FRACTION

A full-size fraction is displayed when you use these control characters. Values assigned to "n" and "d" defines the numerator and denominator respectively. "!" is the separation character. No control characters can be nested inside the brackets.

<Tr!s> TWO LINES OF TEXT

"r" and "s" are two lines of text displayed one line over the other, usually positive, real numbers that cannot contain any control characters except <Rn!d> or <Qn!d> to insert fractions.

<Xm.n@exp_name> EXPRESSION VALUE

Where "X" indicates a reference to an expression.

Where "m" indicates the minimum field width. If required, the expression value will be padded with blank spaces on the left to fill the field width. If m=0 the leading zero will be suppressed.

Where "n" indicates the maximum number of digits after the decimal point of the expression value. If n=0 the value will display as a whole number. The m and n can be separated by a comma or a period depending on the decimal point separator desired.

NOTE: If the text is part of a dimension, "m.n" can be omitted. If it is omitted, the number of decimal places used for the dimension will also be used for the expression value.

Where "exp_name" indicates the expression name. The expression name is case sensitive. An expression from a part that is not the current work part can also be referenced by specifying the following provided that interpart expressions customer default set turned on.

<part name>::<exp_name>

<XA@exp_name> EXPRESSION ASSIGNMENT

Where "A" indicates that the expression assignment statement is displayed rather than the expression value.

Where "exp_name" indicates the expression name. The expression name is case sensitive.

Example:
For the expression "p1=if(p0<2)3 else 2*p0", the <XA@p1> control character text will display as follows:
p1=if(p0<2)3 else 2*p0

<W@attr_title> PART ATTRIBUTE

Where "W" indicates a reference to a part attribute.
:w
Where "attr_title" indicates the referenced attribute title.

<W!obj_id@attr_title> OBJECT ATTRIBUTE

Where "obj_id" indicates the unique identifier of the object to which the attribute is associated. The only valid attribute is a variable length character string.

<Wobj_name@attr_title> OBJECT ATTRIBUTE

Where "obj_name" indicates the object which the object attribute has been assigned to. It is important to note that if multiple objects have the same name, the first object found will be selected. Therefore, it is recommended that unique object names be used when object attribute are assigned. The only valid attribute is a variable length character string.
