UF_DRF_id_symbol_info_s
(view source)
Defined in: uf_drf_types.h
Also known as:
UF_DRF_id_symbol_info_t
UF_DRF_id_symbol_info_p_t
Overview
This is a structure to hold information in ID Symbol

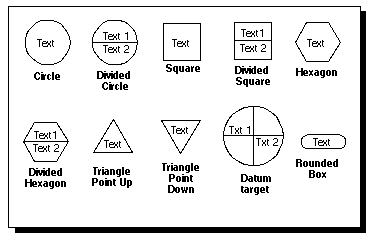

Please see the following figure for ID Symbols
Figure ID Symbols
Data Members
size
double
num_text
int
number of text block
text_info
UF_DRF_draft_aid_text_info_t *
text information
num_leaders
int
number of leaders
leader_info
UF_DRF_leader_info_t *
leader information
num_arrows
int
number of arrowheads
arrow_info
UF_DRF_arrow_info_t *
arrowhead information
