UF_DRAW_arrow_parms_s (view source)

Defined in: uf_draw_types.h

Also known as:



Data Members

size
double
Arrow size must be greater than 0.

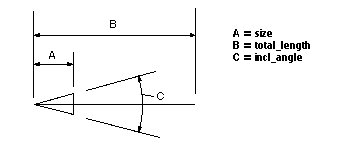

Figure Arrow Display Sizes (A in the figure)

total_length
double
Arrow total length (must be
greater than 0)

incl_angle
double
Arrow included angle
(must be greater than 0)

past_part_dist
double
Arrow past part
(must be greater than 0)

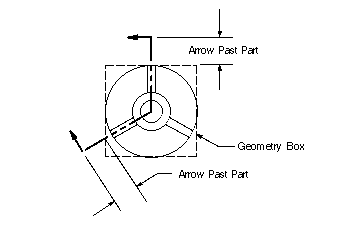

Figure Arrow Past Part Distance

stub_len
double
Arrow stub length
(must be greater than 0)

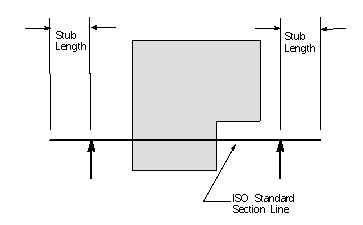

Figure Stub Length

head_type
UF_DRAW_arw_head_type_t
Arrow head type
UF_DRAW_ansi_arrow = ansi arrow
UF_DRAW_iso_arrow = iso arrow

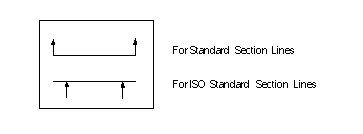

Figure Ansi vs. ISO arrow head types

head_control
UF_DRAW_arw_head_cntl_t
Arrow head control (style)
(must be greater than 0)
UF_DRAW_open_arrowhead
UF_DRAW_closed_arrowhead
UF_DRAW_filled_arrowhead


Figure Arrowhead Style
